Scatter Matrix Sharing for Distributed, Supervised Learning

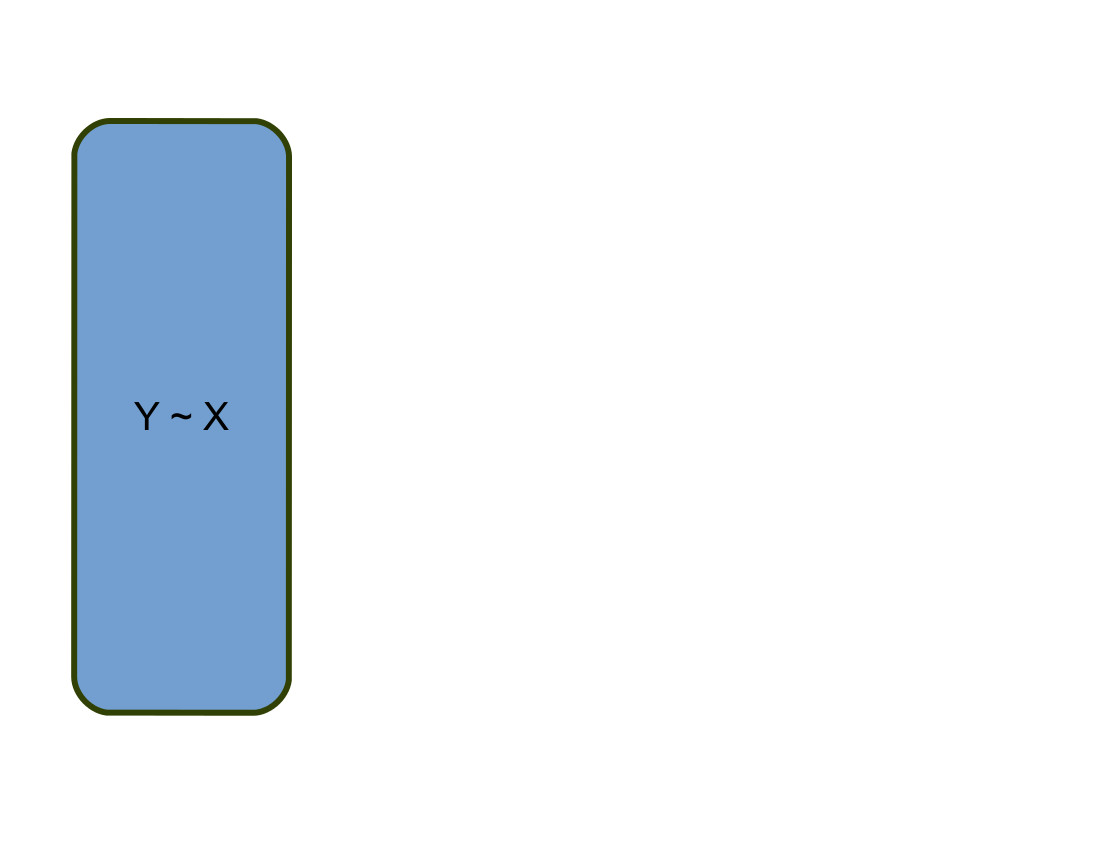

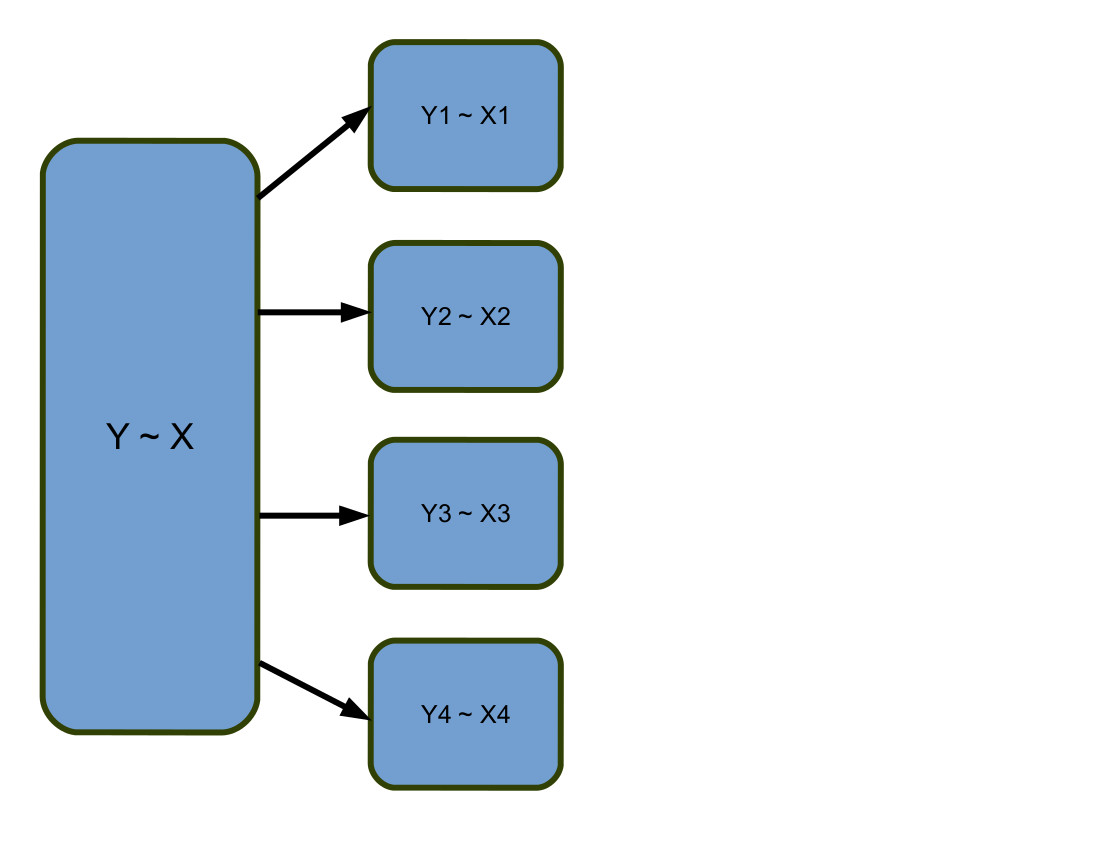

1. Provide a quick background of Large Complex Data: Divide and Recombine (D&R) with RHIPE (Guha, Hafen, et. al).

2. Propose a method for assessing the "stability" of this approach based on the scatter matrix

3. Show the statistical properties of the scatter matrix under various model assumptions

4. Show how "Scatter Matrix Sharing" can be used to get exact results in supervised learning challenges

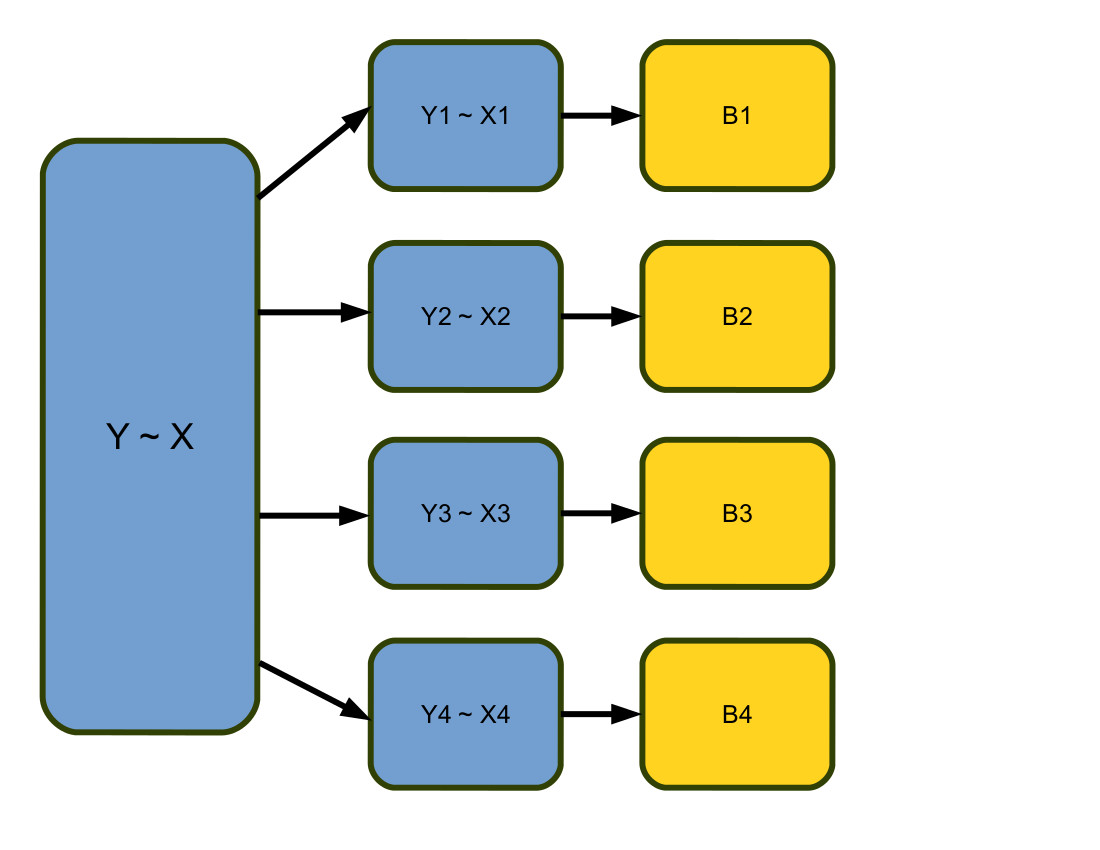

1. You don't have train a learner (fit a model) on an entire data set
   • Many "small" learners are better than a single "big" one
   • Applies to a large class of supervised learning problems

2. This can be done in a single MapReduce step
   • Fits on modern "embarrassingly parallel" computing frameworks
   • Minimum number of MR "units"

If we represent the problem as: \[ \left[ \begin{array}{c} Y_1 \\ Y_2 \\ \vdots \\ Y_r \end{array} \right] = \left[ \begin{array}{c} \mathbf{X}_1 \\ \mathbf{X}_2 \\ \vdots \\ \mathbf{X}_r \end{array} \right] \beta. \]

then D&R works when

\[ (\mathbf{X}^T \mathbf{X})^{-1} \mathbf{X}^T Y = \sum_{i=1}^r (\mathbf{X}_i^T \mathbf{X}_i)^{-1} \mathbf{X}_i^T Y_i \]

If \(\mathbf{S}^{-1} = (\mathbf{X}^T \mathbf{X})^{-1}\) exists, \(\mathbf{S}_i^{-1} = (\mathbf{X}_i^T \mathbf{X}_i)^{-1}\) exist, and \(\frac{c}{n} \mathbf{S}_i = \mathbf{S}\) then

\[ \beta = \sum_{i=1}^r \mathbf{S}_i^{-1} \mathbf{X}_i^T Y_i \]

Proof: WLOG assume \(r=2\)

\[ \begin{align*} \beta &= \left( \left[ \begin{array}{cc} \mathbf{X}_1^T & \mathbf{X}_2^T \end{array} \right] \left[ \begin{array}{c} \mathbf{X}_1 \\ \mathbf{X}_2 \end{array} \right] \right)^{-1} \left[ \begin{array}{cc} \mathbf{X}_1^T & \mathbf{X}_2^T \end{array} \right] \left[ \begin{array}{c} Y_1 \\ Y_2 \end{array} \right] \\ &= \left( \mathbf{S}_1 + \mathbf{S}_2 \right)^{-1} (\mathbf{X}_1^T Y_1 + \mathbf{X}_2^T Y_2) \\ &= \frac{1}{2} \mathbf{S}^{-1} (\mathbf{X}_1^T Y_1 + \mathbf{X}_2^T Y_2) \end{align*} \]

In OLS we fix (condition on) the data.

Linear algebra doesn't give us a way to do this short of calculating \(\mathbf{S}\).

Assume a probability model on the data before learning

For an \(n \times p\) positive matrix \(\mathbf{A}\) the Frobenius norm is defined as:

\[ ||\mathbf{A}||_F = \sqrt{\sum_{i=1}^n \sum_{j=1}^p |a_{ij}|^2} = \sqrt{\textrm{trace}(\mathbf{A}^T \mathbf{A} )} \]

Let \(\Upsilon = \textrm{diag}(S)\)

Scatter matrix stability

\[ R(\mathbf{X}_i, \mathbf{X}) = \frac{n}{c} \frac{||\mathbf{X}_i \Upsilon^{-1}||^2_F}{ ||\mathbf{X} \Upsilon^{-1}||^2_F} \] Independent scatter matrix stability \[ R(\mathbf{X}_i, \mathbf{X}_{n \setminus i}) = \frac{n}{c} \frac{||\mathbf{X}_i \Upsilon^{-1}||^2_F}{ ||\mathbf{X}_{n \setminus i} \Upsilon^{-1}||^2_F} \]

If \(\mathbf{X}\) is distributed as \(\mathcal{N}(0, \Sigma)\) then \(R(\mathbf{X}_i, \mathbf{X})\) is distributed as:

\[ \frac{n}{c} \textrm{Beta} \left(\frac{c}{2}, \frac{n-c}{2} \right) \]

Expected value is 1

Variance is

\[ \frac{\frac{n(n-c)}{2}}{\left(\frac{n}{2}\right)^2\left(\frac{n}{2}+1\right)} = \frac{n-c}{cn/2+1} \]

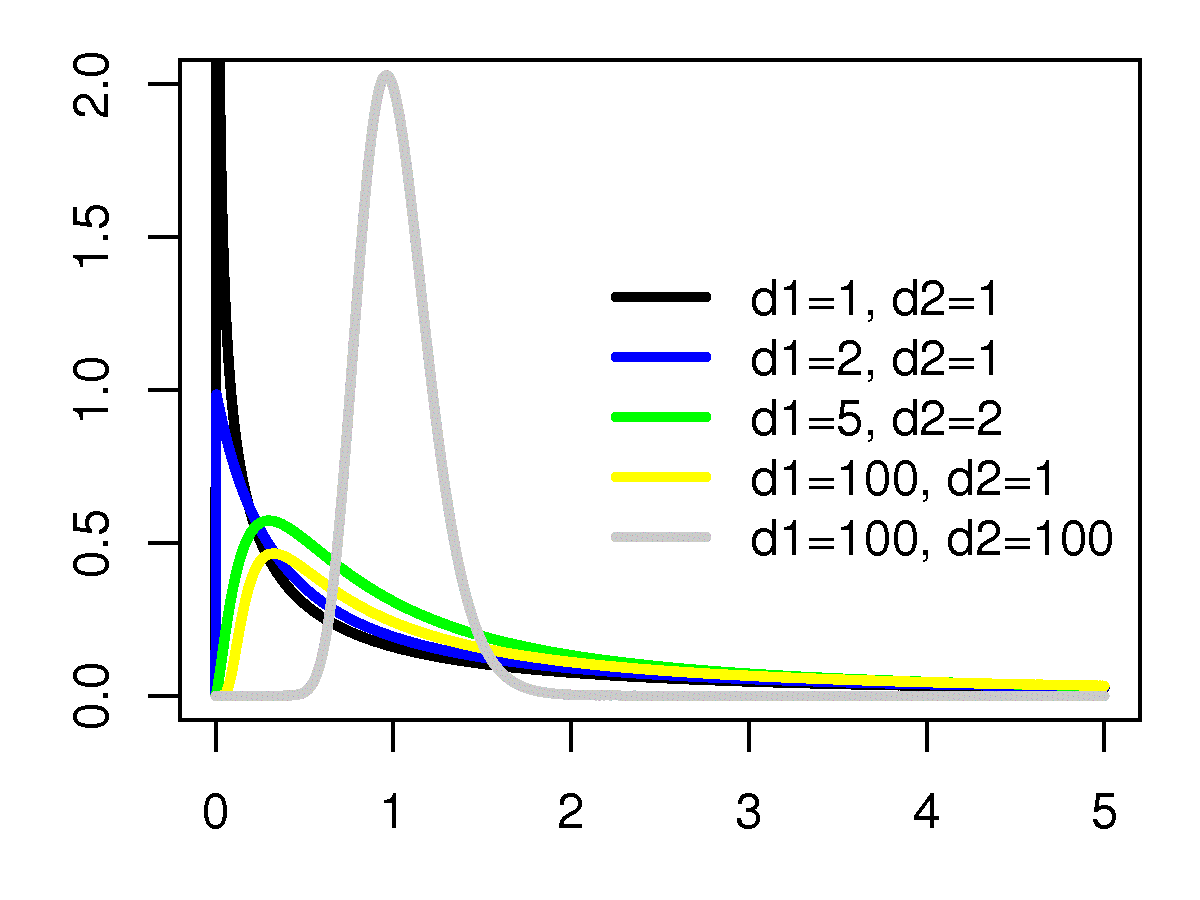

\(F(c, n-c)\) distribution

Expected value is

\[ (n-c)/(n-c-2) \]

Variance is

\[ \frac{2(n-c)^2(n-2)}{c(n-c-2)^2(n-c-4)} \]

Assume some distribution then by the CLT the ratio distribution approaches a Cauchy

\[ f(z) = \frac{1}{\pi} \frac{\sqrt{n/c}}{(z-1)^2 + n/c} \]

If you believe the Cauchy model, then there may be a problem

What can we do to fix this?

Return the scatter matrices along with slope coefficients

Weight based on some measure of consensus

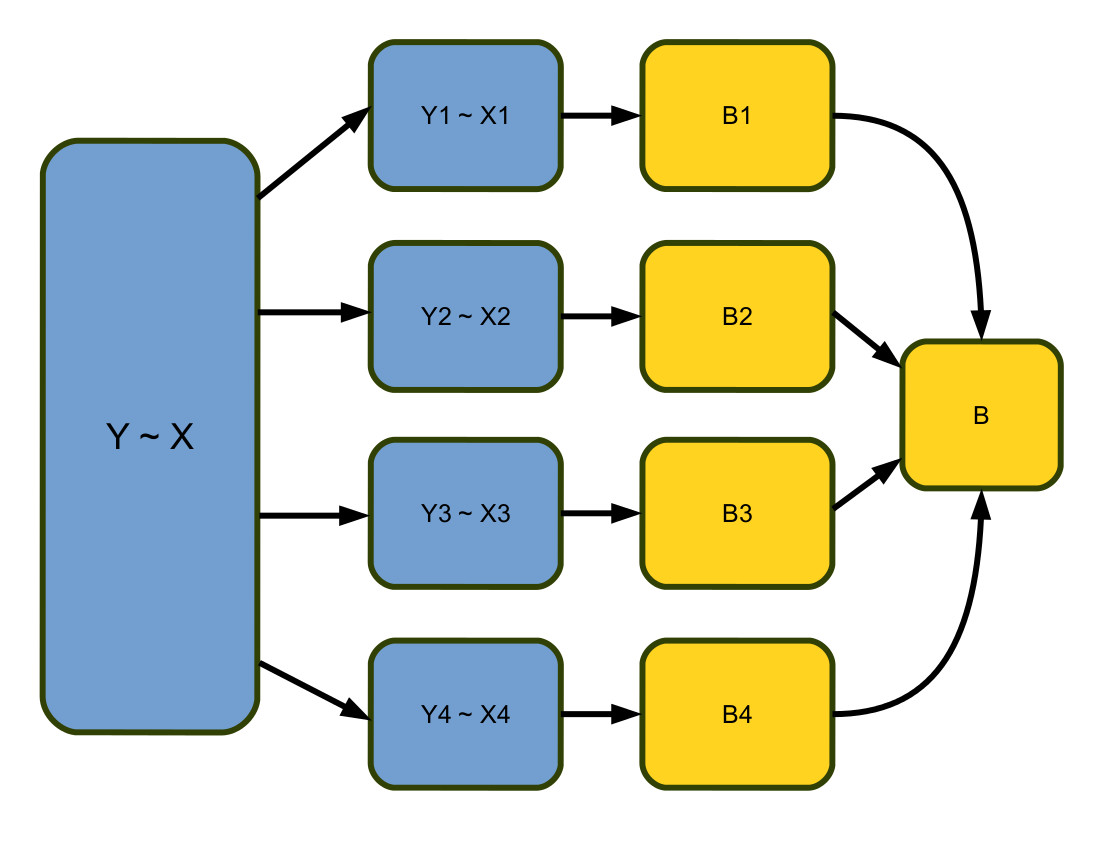

Spend 1 MR step calculating the scatter matrix, \(X^T X\).

In subsequent steps:

• "Share" the scatter matrix among all distributed workers
• Aggregate the results to create a single learner

Currently have an R package on Github

Benchmarks are slightly boring

Challenge is generalizing code for different data stores
